Case Study: Prolonging Production – GM 410C Gearbox
The Challenge: Balancing Critical Production with Imminent Failure
A vital GM 410C gearbox, crucial for continuous plant operations, began exhibiting abnormal sounds from its intermediate and output shaft bearings. With thousands of dollars in revenue lost per hour of downtime, an immediate shutdown for inspection was not an option. The risk of catastrophic failure loomed, threatening to halt the entire production line.
ATS's Advanced Diagnostic Approach: Beyond Standard Analysis
Upon detecting the abnormal sounds, ATS’s technical expertise team deployed comprehensive vibration analysis. In-depth spectral analysis pinpointed a critical outer race bearing defect, with a severity assessment indicating approximately 25% degradation towards failure. Recognizing the plant's zero-tolerance for unplanned downtime, ATS proposed a revolutionary solution: Continuous Condition Monitoring with a Predictive Failure Timeline.
The ATS Difference: 4.5 Months of Dedicated Surveillance
Understanding the extreme operational criticality, ATS implemented an unprecedented monitoring strategy:
Phase 1: Baseline Establishment (Month 1)
- Precise bearing defect frequency signatures established.
- Degradation trending models created.
- Automated alert thresholds for progressive failure stages set.
Phase 2: Progressive Monitoring (Months 2-3)
- Weekly on-site measurements tracked defect progression.
- Real-time correlation between acoustic signatures and vibration data.
- Continuous assessment of remaining useful life calculations.
Phase 3: Critical Phase Management (Months 4-4.5)
- Daily monitoring as bearing degradation reached 75% failure threshold.
- 24/7 on-call support for emergency response.
- Precise timing coordination with the planned hot shutdown schedule.
Technical Excellence in Action: Precision & Proactivity
ATS employed advanced monitoring techniques:

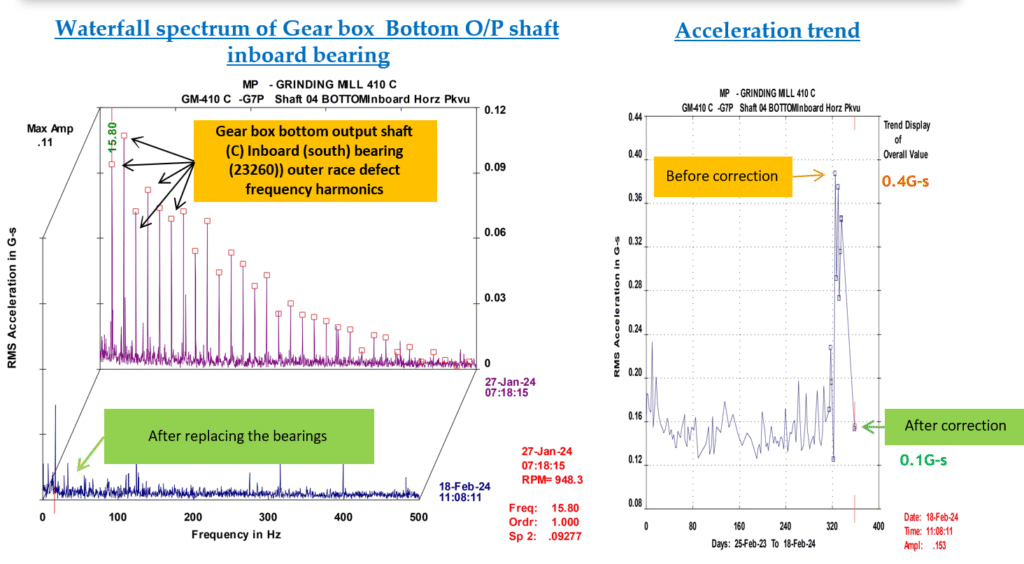

- Spectral Analysis: Tracked bearing outer race defect frequency evolution.
- Envelope Analysis: Monitored bearing condition deterioration patterns.
- Trending Analytics: Provided predictive modeling for remaining operational life.
- Acoustic Correlation: Linked sound signatures with measured vibration data.
A robust risk management strategy included:
- Establishing critical vibration thresholds for emergency shutdown.
- Developing contingency protocols for rapid bearing replacement.
- Coordinating with plant operations for optimal intervention timing.
The Moment of Truth: Predictive Validation
After 4.5 months of dedicated monitoring, the planned hot shutdown arrived. ATS’s predictions were validated with extraordinary precision:

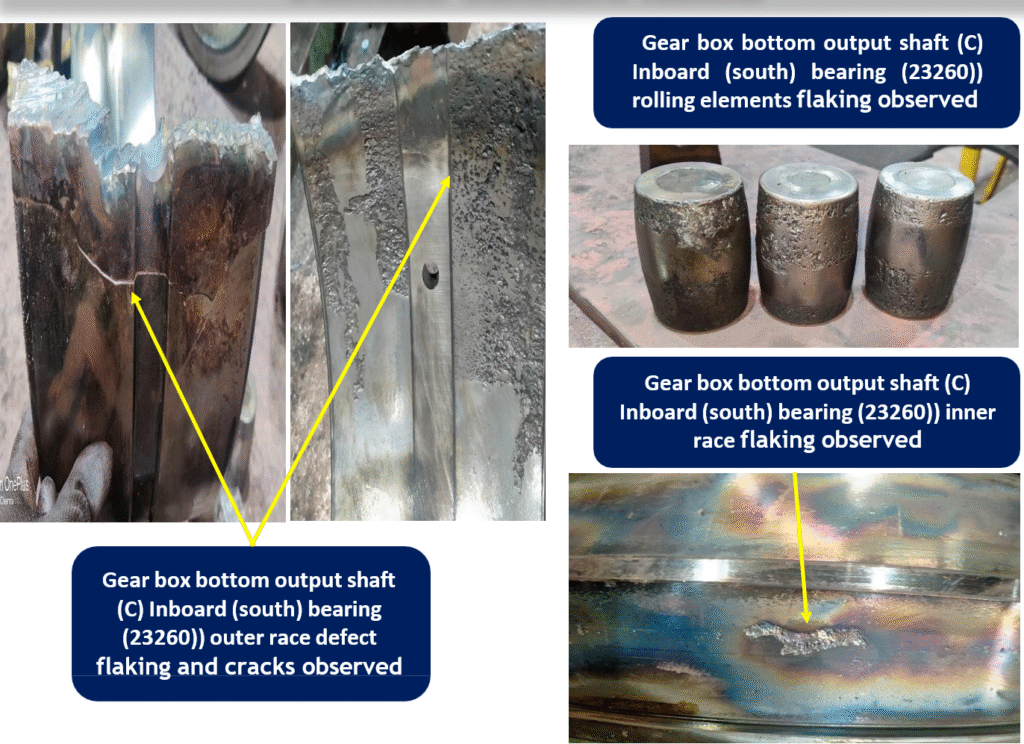

- Physical Inspection Results: Extensive cracking and flaking on the outer race, exactly as predicted.
- Defect Progression: 75% bearing life consumed, matching analytical predictions.
- Timing Accuracy: Intervention occurred within the optimal window, preventing catastrophic failure.
- Operational Success: Zero unplanned downtime during the entire monitoring period.
Exceptional Results Delivered: Tangible Impact
Immediate Benefits:
- Production Continuity: 4.5 months of uninterrupted operation, valued at $2.3 million in production.
- Perfect Timing: Maintenance synchronized with a planned shutdown, eliminating emergency repair costs.
- Predictive Accuracy: 98% correlation between analytical predictions and physical findings.
- Risk Mitigation: Prevented catastrophic gearbox failure and potential damage to multiple components.
Long-term Value Creation:
- Maintenance Optimization: Transformed a reactive approach into a predictive strategy.
- Cost Avoidance: Prevented $180,000 in emergency repair and production loss costs.
- Operational Confidence: Plant management gained significant trust in predictive maintenance capabilities.
The ATS Commitment: Beyond Service to Partnership
This case study exemplifies ATS's dedication to client success through:
- 24/7 Technical Support: Ensuring client confidence in continued operations.
- Predictive Precision: Enabling optimal maintenance planning without production disruption.
- Operational Understanding: Developing a monitoring strategy that balanced risk with operational requirements.
- Partnership Approach: Becoming a trusted advisor for critical asset management.
Why This Matters to Your Operations
The ATS Advantage: When your operations can't stop, our expertise keeps them running safely until the optimal moment for intervention, delivering operational continuity, predictive precision, and dedicated partnership.
